Oracle APEX rename Region Display Selector tabs at runtime

This post describes how you can change an RDS tab name at runtime using a P0 value.  I am using APEX 19.2.

I have a form with a standard RDS with the following tabs.  The requirement is the Scholarship, Knowledge, Exchange & Impact tab name should change depending on the value of a P0 value.

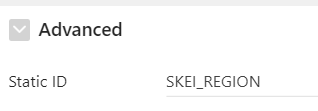

 This Scholarship, Knowledge, Exchange & Impact region has this static ID set;

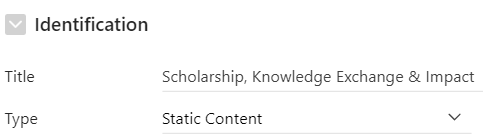

and is named Scholarship, Knowledge, Exchange & Impact which is what displays on the tab;


Using JavaScript in Execute when page loads we check the PO value, if it is the target form we change the tab name to Scholarship when the page loads.

if ($v( "P0_FORM_ID" ) == '6001')
{
    $('#SKEI_REGION_tab > a > span').text('Scholarship');
    $('#SKEI_REGION > div.t-Region-header > div.t-Region-headerItems.t-Region-headerItems--title').text('Scholarship');
}
